标题
# Author: Osprey
# 本脚本用于生成 MDK 包含的源文件信息

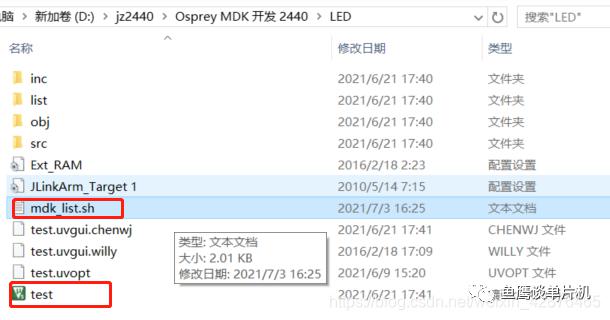

# 必须使用 MDK 编译后,在工程文件目录下执行本脚本

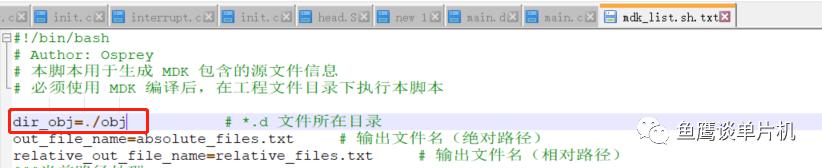

dir_obj=./obj # *.d 文件所在目录
out_file_name=absolute_files.txt # 输出文件名(绝对路径)
relative_out_file_name=relative_files.txt # 输出文件名(相对路径)
###当前路径处理
# 斜杠替换为反斜杠 \ 也是特殊字符,需要转义 操作 `` 有问题
curr_dir=`pwd`/
echo ${curr_dir} | sed 's/\//\\/g' > ${out_file_name} && curr_dir=`cat ${out_file_name}`
curr_dir=${curr_dir#*\\} # 去除第一个斜杠
# 第一个反斜杠替换 :\
echo ${curr_dir} | sed 's/\\/:\\/' > ${out_file_name} && curr_dir=`cat ${out_file_name}`
# 替换 \ 为 \\ 防止 sed 命令出错
echo ${curr_dir} | sed 's/\\/\\\\/g' > ${out_file_name} && curr_dir=`cat ${out_file_name}`
echo "curr dir: ${curr_dir}"

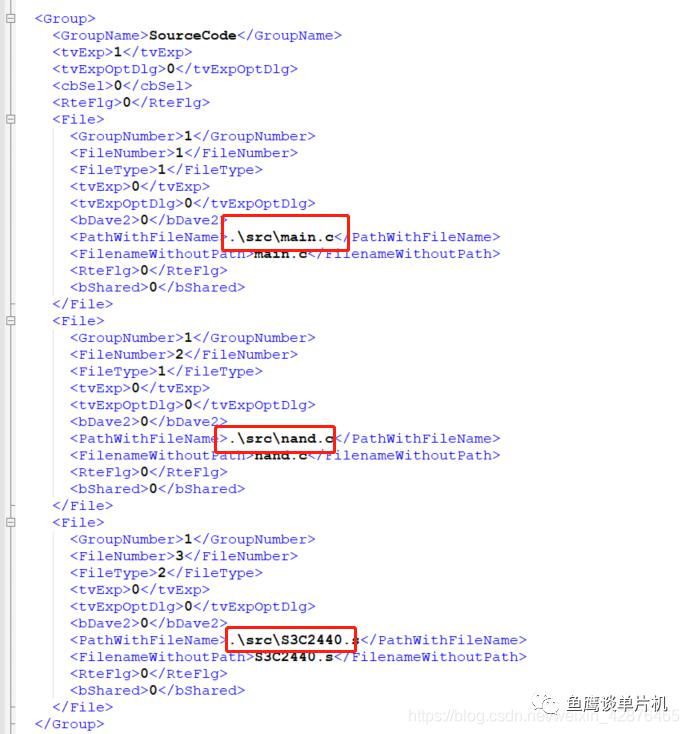

# *.d 文件中包含了源文件信息所以不需要从 *.uvoptx 中提取,下面这些 if 里面的命令没有意义
if false ; then
dir_uvoptx=./
file_uvoptx=`find ${dir_uvoptx} -name "*.uvoptx"`
echo "file the name: ${file_uvoptx}"
sed -i "s/ <PathWithFileName>/"${curr_dir}"/g" ${out_file_name}
sed -i 's/<\/PathWithFileName>//g' ${out_file_name}
fi
# 首先进入目录
cd ${dir_obj}
temp_file_name=temp_files.txt
find ./ -name "*.d" | xargs cat > head_temp.txt # 合并所有 d 文件
if [[ ! -s head_temp.txt ]]
then
echo "file is null, please build the project" # 文件空白
exit 0
fi
# 去除重复文件,并排序
sort -u head_temp.txt > head_temp1.txt
# 去除标准头文件 搜索关键 ':\' (包含了标准头文件),分隔符 ':' 去除 *.O 文件名 'o: ..' 'o: \.\.'
cat head_temp1.txt | grep -v ':\\' | awk -F ": " '{print $2}' > head_temp.txt
# 替换 / 为 \
sed -i 's/\//\\/g' head_temp.txt
# 添加绝对路径
absolute_files=../${out_file_name}
echo "add absolute dir: ${curr_dir}" # 双反斜杠是为了防止 sed 命令出错
#行首(^ 代表行首)添加绝对路径字符串

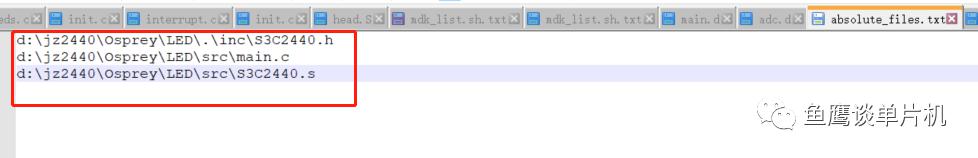

sed "s/^/"${curr_dir}"/g" head_temp.txt > ${absolute_files}
# 添加相对路径(去除 ..\ )必须用单引号(根据 SI 工程的情况决定是否去除 ..\)
relative_files=../${relative_out_file_name}
sed 's:\.\.\\::g' head_temp.txt > ${relative_files}
rm head_temp.txt head_temp1.txt # 删除文件
cnt=`wc ${absolute_files} | awk '{print $2}'` # 计文件数

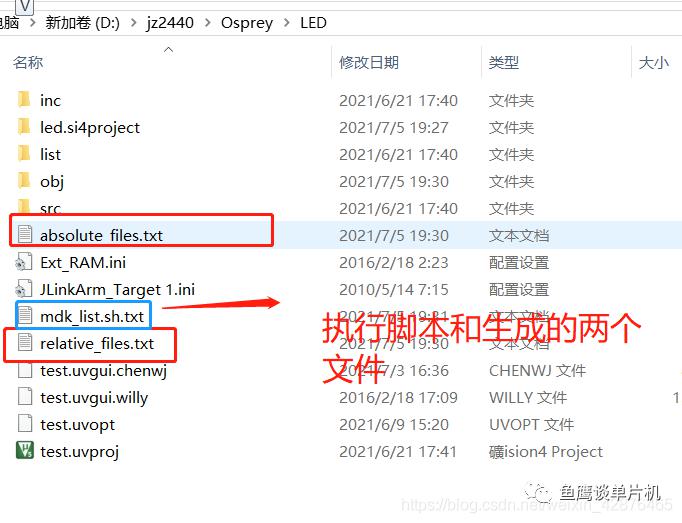

echo "all files is saved in file: ${absolute_files##*/} && ${relative_files##*/}, files number is: ${cnt} "
./mdk_lsit.sh.txt
